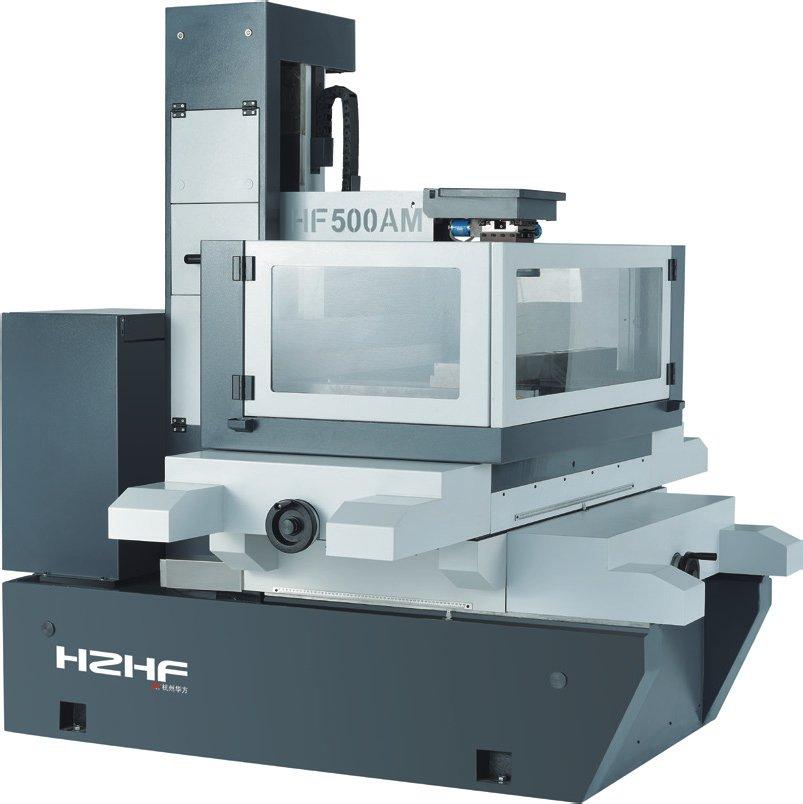

Worktable Size: 1134×712mm

Worktable Stroke: 500×800mm (Servo control drive)

Maximum Cutting Thickness: 600mm (Special custom products)

Taper of Cutting Workpiece: ±6° (200mm from the center of the upper and lower guide wheels)

Accuracy of Cutting Octagon Workpiece: ≤0.005mm (prism)

Optimum Roughness (prism): Multiple-cut Ra≤1.0µm at 50mm²/min

Using our company's "Thermal Cycle Pump" patented technology for heat dissipation

Actual Maximum Cutting Efficiency:
≥180mm²/min (continuous cutting area over 500,000mm²)

Electrode Wire Loss:
≤0.01mm (when the continuous cutting area is up to 400,000mm² at a speed of 110mm²/min)

Wire Speed: Adjusted by program

Maximum Electrode Wire Diameter: ≤0.25mm

Net Weight: 2600kg

Maximum Load Weight: 2000kg

Outer Diameter Size of Machine Tool: 2050×2174×2100mm

Power Consumption of Machine Tool: ≤0.8kW
